Frigo58 SmartLift 1D
1
Full width of vehicle. Schmitz Cargobull compatible.
Frigo58 SmartLift 1D
Combining performance and convenience.

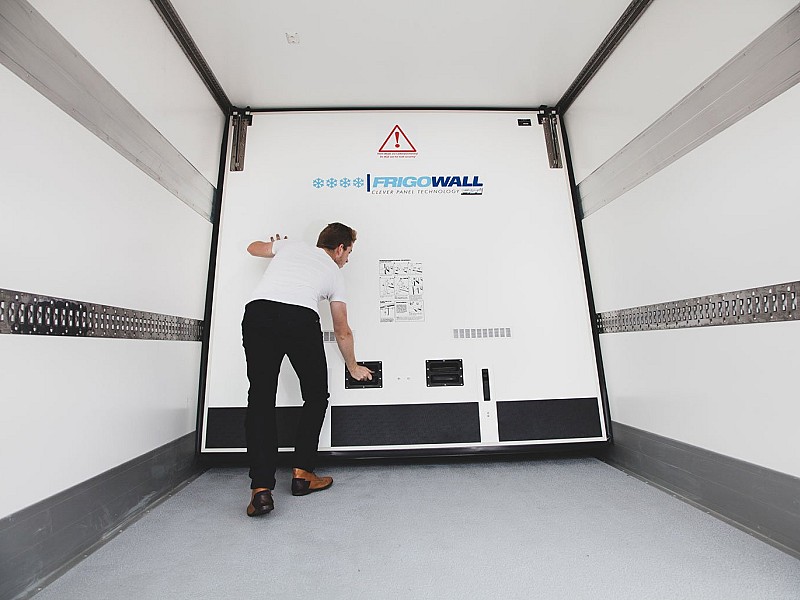

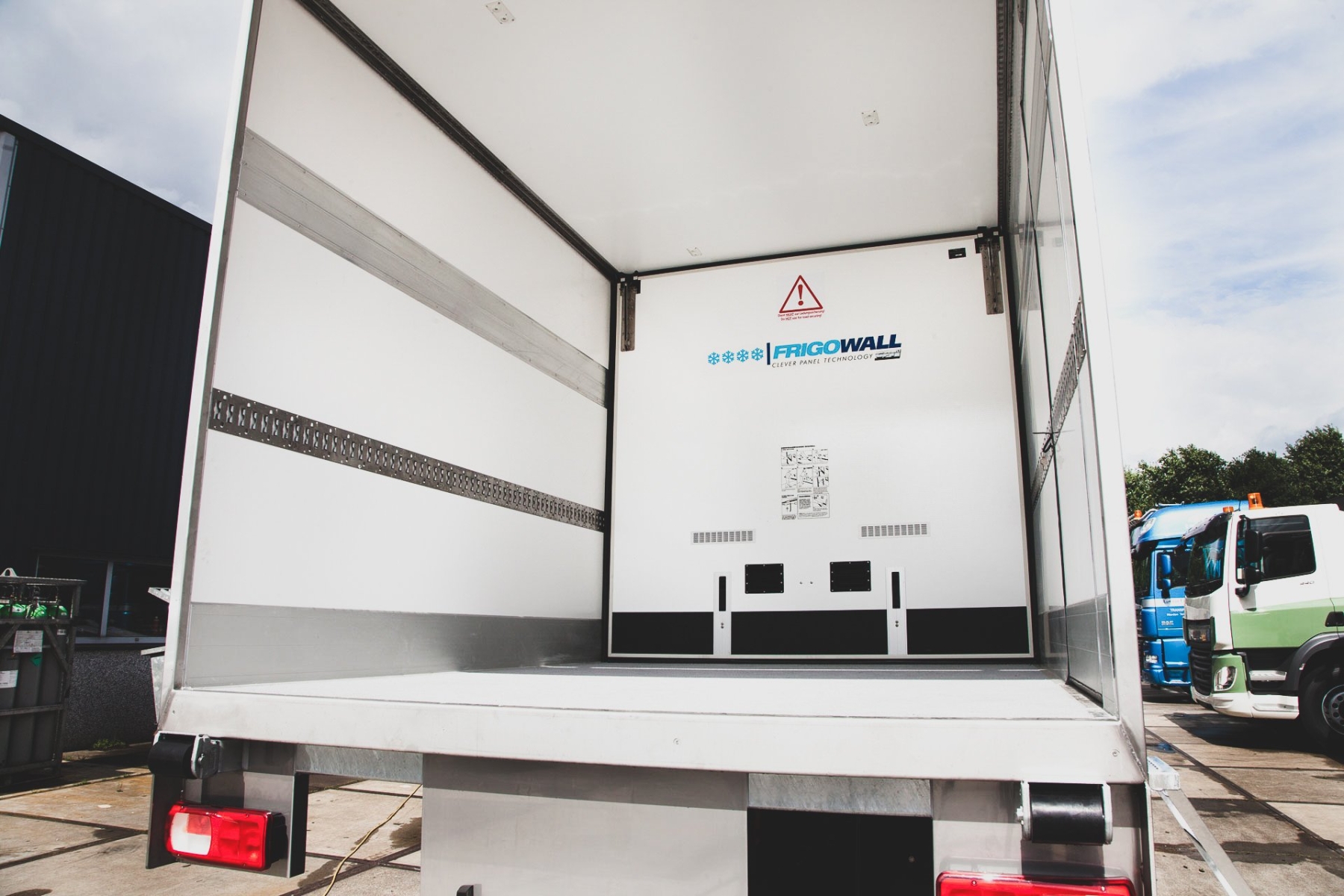

The hard-wall IsoLok Frigo58 SmartLift 1D combines high insulation performance with the highest convenience possible combined with lowest height restriction (110mm). Available in different versions, also compatible with Schmitz Cargobull roof tracks.
The hard-wall IsoLok Frigo58 SmartLift 1D combines high insulation performance with the highest convenience possible combined with lowest height restriction (110mm). Available in different versions.
The single span, fixed bulkhead can be repositioned throughout the entire refrigerated trailer/reefer when it is in a 45° position. This reduces the size of the cooled compartment (less fuel consumption) and keeps the cooled air in during loading and unloading. Simply unlock the integrated floor stoppers to open the entire separation wall with the integrated handgrip.
Scroll down for all related downloads or visit the Knowledge Base.
Lowest height restriction
110mm
Best Insulation Performance
0,58 w/m2K
SmartLift
Unique balancer system. Also compatible for Schmitz Cargobull roof tracks.
Frigo58 SmartLift 1D versions
Select your the version that fits your vehicle and application best. All versions are compatible with Schmitz Cargobull.

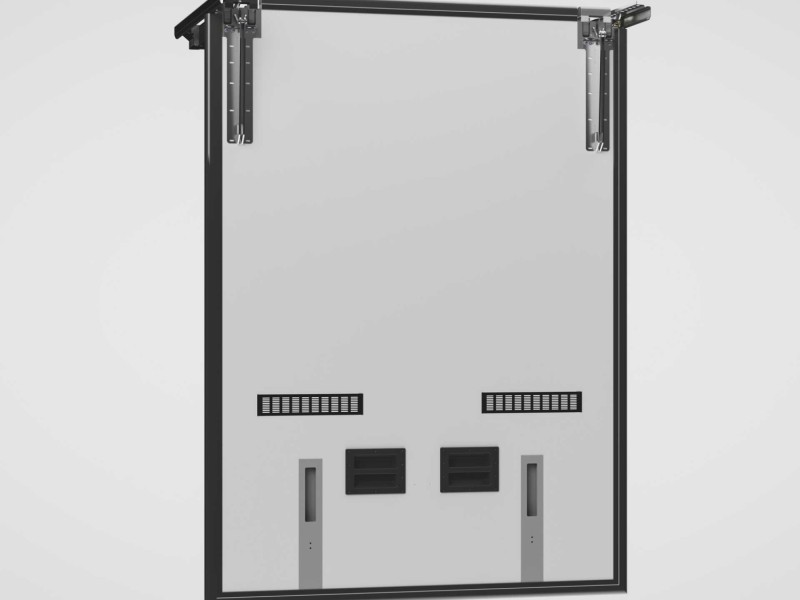

Frigo58 SmartLift 1D
2/3
Two-third of vehicle. Schmitz Cargobull compatible.
Frigo58 SmartLift 1D

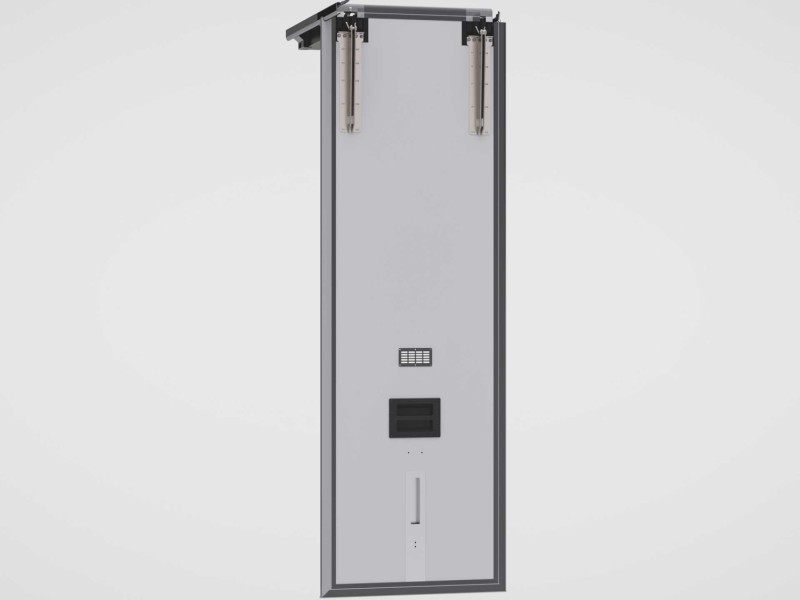

1/3
One-third of Vehicle. Schmitz Cargobull compatible.
SmartLift
The SmartLift system allows the bulkhead to be easily and quickly repositioned over the length of the trailer. When the bulkhead is in parking or operating position, the system will lock automatically for safety during transport. We offer different versions to make it fully compatible with the roof track system within your trailer. Select the balancer of choice:
- IsoLok SmartLift MK4: compatible with 3061 / 3062 J-Track
- IsoLok SmartLift MK4: compatible with original Krone roof tracks
- IsoLok SmartLift CS MK7: compatible with original SCB roof tracks
- IsoLok SmartLift MK8: compatible with aluminium 3073 RS-Track
Height restriction is depending on the balancer and installed track system in the vehicle.
Your ultimate solution?
The Frigo58 SmartLift 1D is ideal in situations when the temperature difference between both compartments is less than 20° Celsius. Also, when convenience in operating is required, for example, with multiple stops during the day (multi-drop distribution). A fixed solution will give the advantage of quickly rescaling the cooled compartment and prevents cooled air from escaping.
The SmartLift system located on both sides with steel coil springs works in accordance with LoadLok 3061 or 3062 J-Track. The SmartLift system allows the bulkhead to be easily and quickly repositioned over the length of the trailer. When the bulkhead is in parking or operating position, the system will lock automatically for safety during transport.
Clever Panel Technology (CPT)
Our Frigo Series consists of 43mm hard wall glassfibre reinforced sandwich panels. These rigid lightweight panels offer excellent insulation values and do not absorb water, ideal in a humid environment. For perfect closure inside the vehicle, the panels are equipped with rubber seals (both sides, bottom and around the balancers) to minimise the cool leakage. The insulation performance is measured in K-value (W/ m2 K). IsoLok solutions with our CPT technology offer the highest K-value performance in its product segment. Significantly better value for money than bulkheads of e.g. OEM’s or others.
Each of our IsoLok solutions have been tested by an independent research center Wageningen University of Research (WUR NL) and are expressed in a K value for thermal conductivity. The K-value expresses the amount of heat that passes through over time per m² and per degree of temperature difference between one side of a wall and the other. The lower the K value, the less heat is lost and therefore the better the insulating performance.
The only low-maintenance solution
Whereas with OEM bulkheads, repairs and maintenance can be extremely time-consuming and expensive. With LoadLok's multitemp solutions there is no more hassle. Most other bulkheads are equipped with fragile gas springs that require continuous service checks, LoadLok uses steel coil springs. The SmartLift mechanic balancer system is a low-maintenance solution for swiftly open/close and reposition the wall in the vehicle.
Frigo Series CPT reinforced sandwich panels are manufactured from glassfiber, which makes them easy repaired by any service partner. In case of any repair, we have spare parts widely available from stock. Your downtime will always be limited.
SmartLift

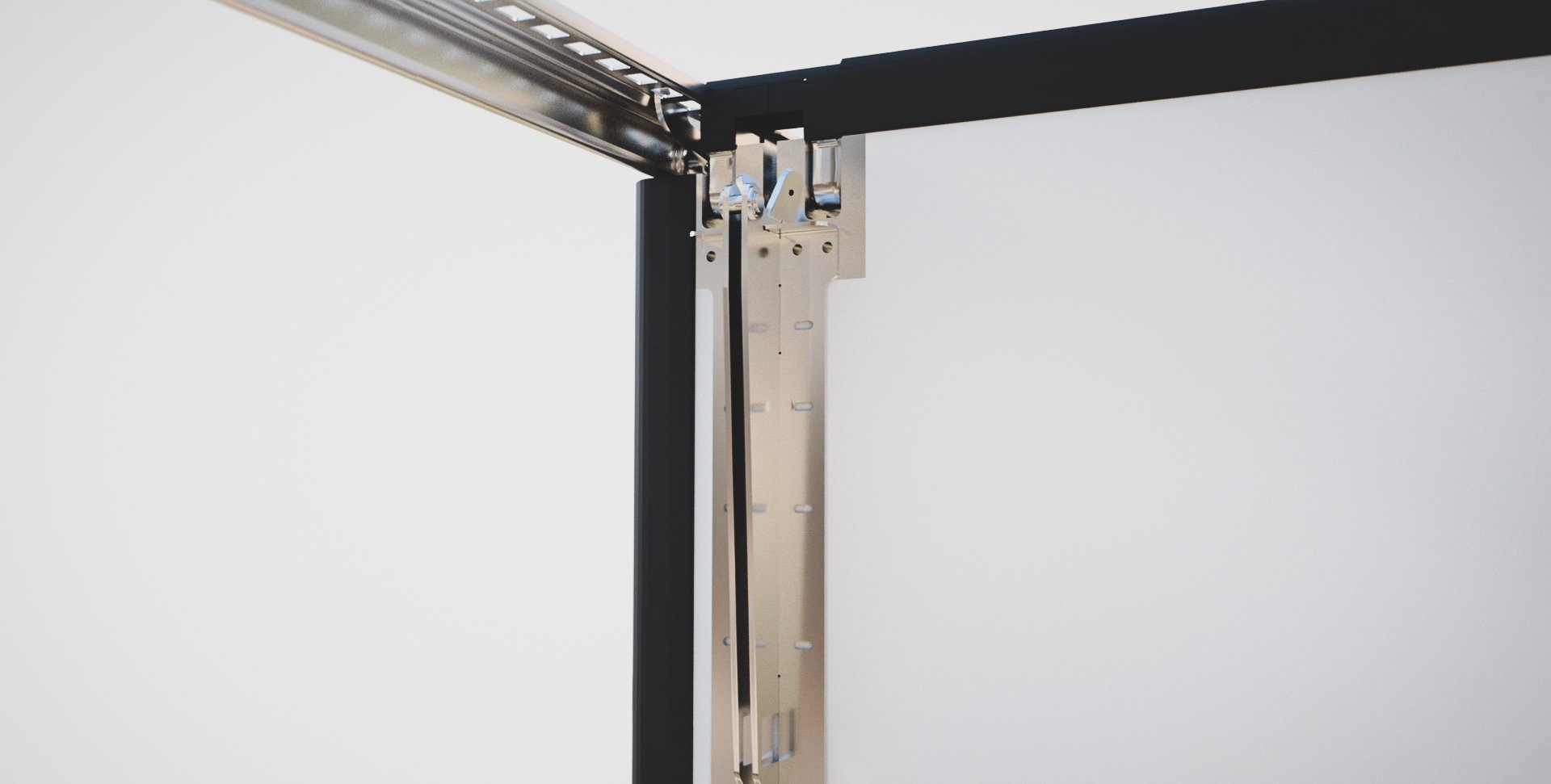

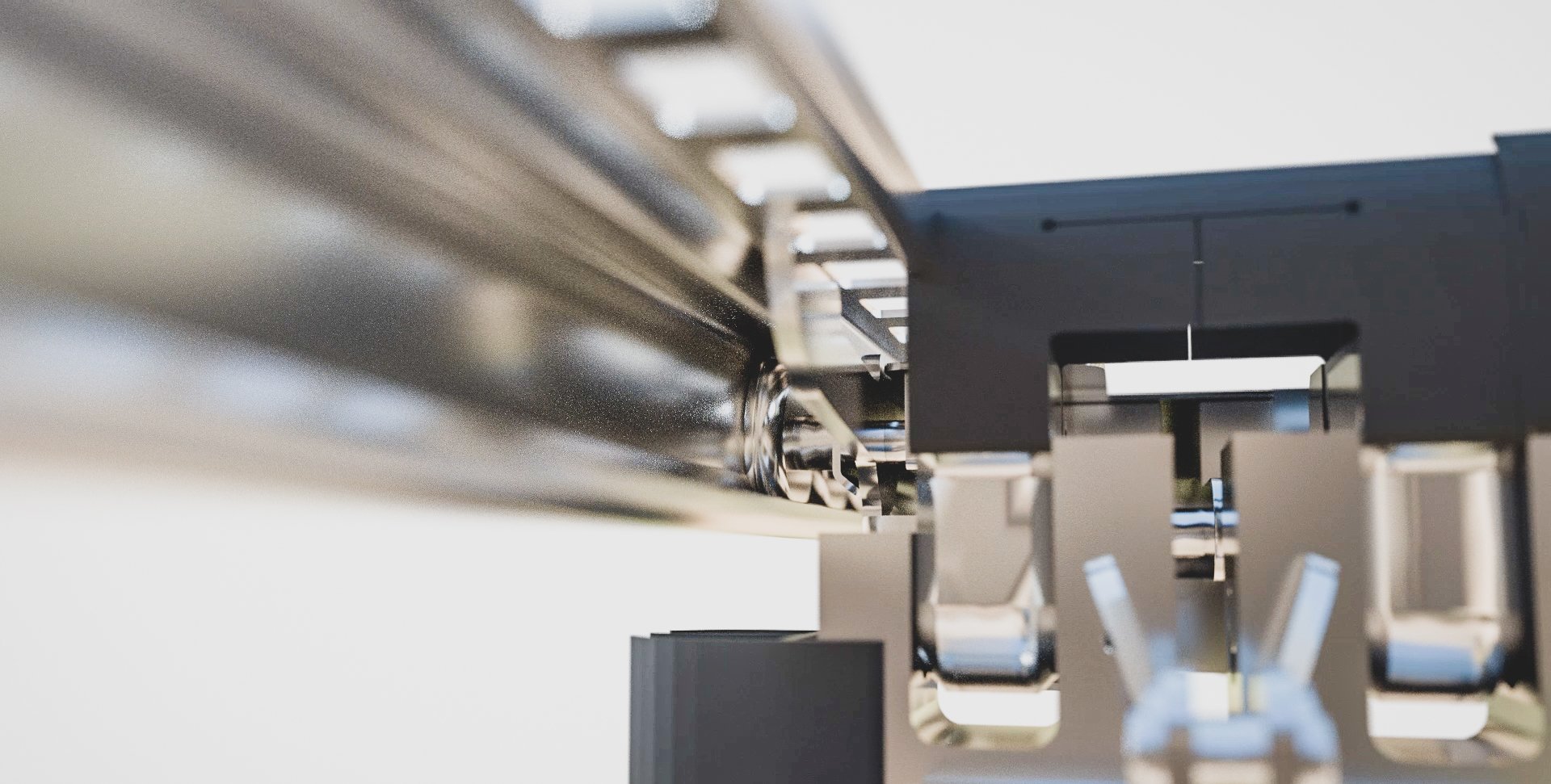

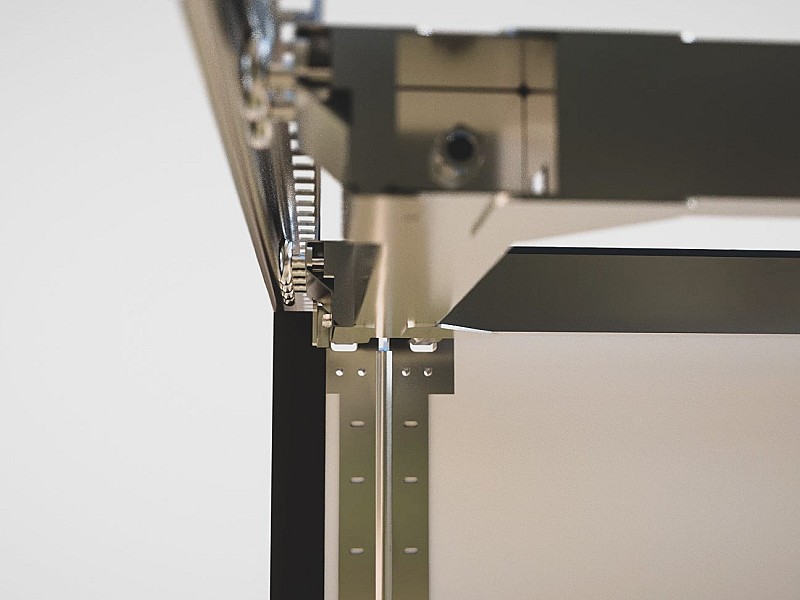

The unique SmartLift balancer system allows the bulkhead to open/close and to reposition the wall in the vehicle. With almost no effort the operator can reposition the wall throughout the vehicle. The SmartLift system has the lowest height restriction in the market: 110 mm (when used with IsoLok tracks). A unique feature when you want to maximise the capacity of your vehicle.
It is equipped with an automatic locking system to prevent any movement during transport. Inside the balancer there is a steel coil spring – completely free of maintenance! The balancer slides in:
- LoadLok J-Track (available in different material finishes)
- LoadLok RS-Track - unique design made out of aluminium
- Schmitz Cargobull standard roof tracks
- Krone standard roof tracks
Ask your sales representative for the optimal SmartLift system for your OEM.
Higher efficiency with multiple temperature zones
IsoLok Multitemp solutions help to rescale the conditioned compartment to the minimum possible (even for partial loads). With market-leading insulation performance and compartment closure, these solutions are able to save users over 40% on energy consumption*. The reduced size of the conditioned compartment enables transport companies to transport dry or cooled products in the remaining space, increasing flexibility and load efficiency and thus increase profit in the cold chain!
* Based on average 50% cargo over the day, calculated by Wageningen University of Research (WUR NL www.wur.nl)
Tailored to any vehicle or application
With market demands varying greatly, our product offering goes far beyond its standard solutions. If the end-user wishes specific requirements which are not in the product line, we are able to customise or develop custom-designed solutions, tailored to the specific needs of its customers.
We have developed and produced specific solutions for Meat, Pharma, Supermarkets, Retail and Restaurants. And not just for reefers, also for Light Commercial Vehicles (Sprinters etc.) Multiple folding, integrated doors, wings, or a specific parking solution?
Let us know how we can tailor the ultimate efficient Multitemp solution for your application.
PIEK Certified for night deliveries
Several IsoLok solutions have been approved and certified according to PIEK standards. With this certificate the bulkhead is suitable for distribution during night-time in city centres!
Governments defined standards for noise emission during loading and unloading during night-time deliveries. A PIEK certificate is issued for vehicles and equipment operating under 60dB(A) which will be suitable for use in night-time deliveries without causing noise disturbance. Check the PIEK certificate in the download section of the product to see if PIEK is applicable.
ATP and HACCP compliant
The ATP, (Accord Transport Perissable) and HACCP (Hazard Analysis and Critical Control Points) set strict regulations for the transport of perishable goods.
The Cool and Frigo Series are compliant to this norm 1.
1 Ask our sales representatives for ATP norm for the French market.
OEM retrofit
Do you need to replace your existing Schmitz partition wall? Or would you like to use a superior product instead of the OEM version? Our full range of Frigo Series and Cool Series Multitemp solutions can be installed in both new and existing trailers of Schmitz Cargobull. Both Multitemp solutions will be delivered in the exact size for the trailer to guarantee an outstanding performance. Our SmartLift balancer system has been made compatible for OEM Schmitz Cargobull tracks and have only a 140mm height restriction.
Product Specifications
| Product | Version | Material | Thickness (mm) | Insulation Value (w/m2K) | Weight (kg) | Load Height Restriction (mm) |
|---|---|---|---|---|---|---|
| Frigo58 SmartLift 1D | 1 | Glassfiber | 43 | 0,58 | 105 | 110 |
| Frigo58 SmartLift 1D | 1/3 | Glassfiber | 43 | 0,58 | 70 | 110 |
| Frigo58 SmartLift 1D | 2/3 | Glassfiber | 43 | 0,58 | 85 | 110 |
Scroll left to right

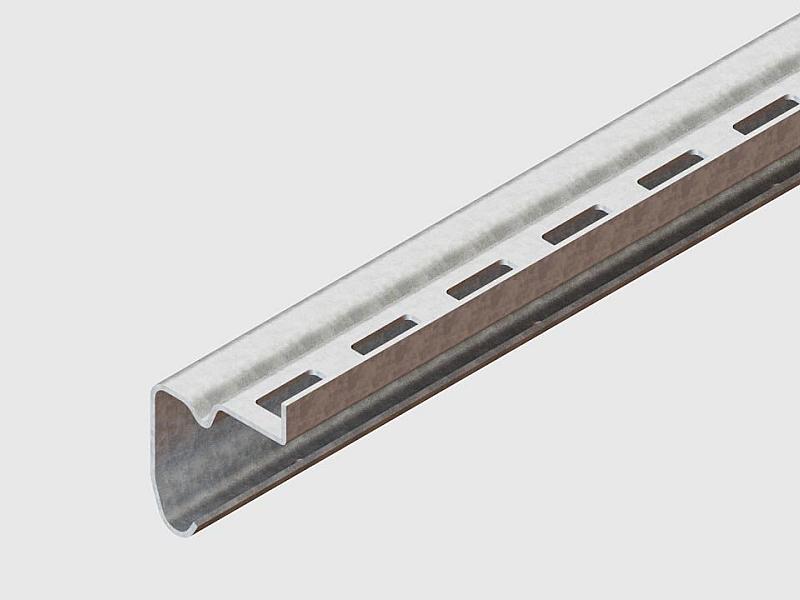

J-Track 306X IsoLok Tracks
| Article no. | Configuration | Product | Material | Finishing | Fixing Hole Ø (mm) | Fixing Hole Pitch (mm) | Thickness (mm) | Length (mm) | Profile Width (mm) | Profile Height (mm) | Duty |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 10010708 | Surface mounted | 3061 | Steel | Pregalvanized | 5 | 100 | 2 | 3200 | 57 | 70 | N.A |
| 10011289 | Surface mounted | 3062 SS 304 | Stainless Steel 304 | No finishing | 5 | 100 | 2 | 4400 | 57 | 70 | N.A |
| 10011290 | Surface mounted | 3062 SS 430 | Stainless Steel 430 | No finishing | 5 | 100 | 2 | 4400 | 57 | 70 | N.A |
| Custom | Surface mounted | 3061 | Steel | N.A | |||||||
| Custom | Surface mounted | 3062 | Aluminum Stainless 430 Stainless 304 | Non-Anodised Anodised | Customizable | Customizable | Customizable | Customizable | Customizable | N.A |
< Scroll left to right >
Minimum order quantities apply, please ask our sales department

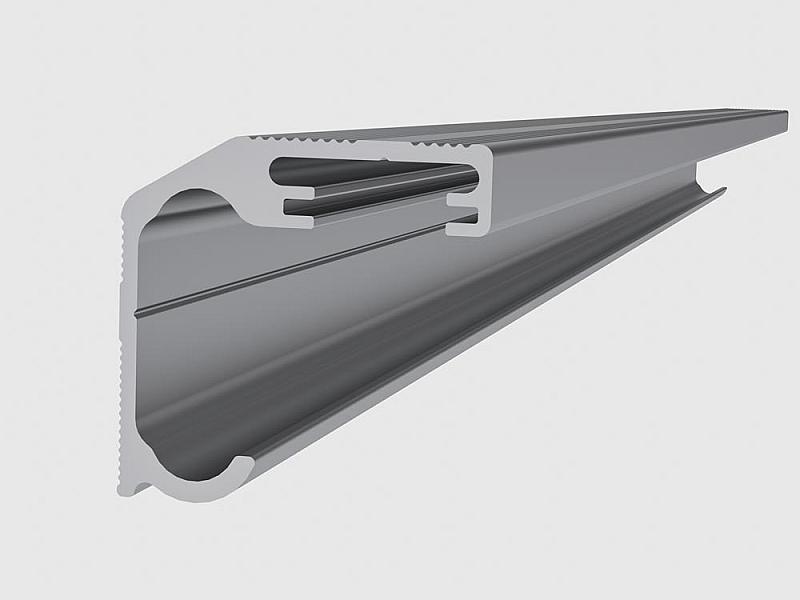

RS Track 3073 IsoLok
| Article no. | Configuration | Product | Material | Finishing | Fixing Hole Ø (mm) | Fixing Hole Pitch (mm) | Thickness (mm) | Length (mm) | Profile Width (mm) | Profile Height (mm) | Duty |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 11067639 | Surface mounted | 3073 | Aluminum | N/A | N/A | N/A | 3 | 6000 | 60 | 58,91 | N.A |
| Custom | Surface mounted | 3073 | Aluminum | Non-Anodised Anodised | Customizable | Customizable | Customizable | Customizable | Customizable | N.A |
< Scroll left to right >
Minimum order quantities apply, please ask our sales department
3D Animation video
Watch our 3D Animated video to discover all details about our IsoLok solution.
Downloads
pdf
156.39 KB
Product Data Sheet
Frigo58 SmartLift Premium
pdf
146.68 KB
Product Datasheets
Frigo58 SmartLift Standard Plus
pdf
140.54 KB
Product Datasheets
Frigo58 SmartLift 2D Standard Plus
Contact our team of specialists
Get in touch with our load securing specialists today. Ask for a quote, product information or a product tailored to your specifications.
Please contact or product specialist from:
Your questions answered
Our most frequently asked questions you will find below. If you have further questions regarding our solutions, don't hesitate to contact our load optimisation experts.
What is the Frigo58 SmartLift 1D?
The Frigo58 SmartLift 1D is a high-performance bulkhead system designed for refrigerated trailers, combining superior insulation with convenience and low height restrictions.
What are the key features of the Frigo58 SmartLift 1D?
- High Insulation: Utilizes 43mm hard wall glassfibre reinforced sandwich panels.
- Convenience: Easily repositioned within the trailer; opens/closes with minimal effort.
- Low Height Restriction: Only 110mm.
- Automatic Locking: Ensures safety during transport.
- Compatibility: Fits Schmitz Cargobull and other OEM roof track systems.
What versions of the Frigo58 SmartLift 1D are available?
- Full Width: Covers the entire width of the vehicle.
- Two-thirds Width: Covers two-thirds of the vehicle's width.
- One-third Width: Covers one-third of the vehicle's width.
How does the SmartLift system work?
The SmartLift system allows the bulkhead to be repositioned along the length of the trailer. It locks automatically when in parking or operating position, ensuring safety during transport. The system is compatible with various track systems and balancers.
What is Clever Panel Technology (CPT)?
CPT refers to the use of 43mm hard wall glassfibre reinforced sandwich panels that provide excellent insulation and do not absorb water. These panels have rubber seals to minimize cool leakage and offer the highest K-value performance in their segment.
What are the maintenance requirements for the Frigo58 SmartLift 1D?
The SmartLift system uses steel coil springs, which are low-maintenance compared to the gas springs used in other bulkheads. The panels are easily repairable by any service partner, and spare parts are widely available.
Is the Frigo58 SmartLift 1D energy-efficient?
Yes, it helps to rescale the cooled compartment to the minimum possible size, reducing energy consumption by over 40%. This efficiency is based on research by Wageningen University of Research.
Can the Frigo58 SmartLift 1D be customized?
Yes, we offer tailored solutions for various applications, including meat, pharmaceuticals, supermarkets, retail, and restaurants. Custom designs are available for specific needs.
Is the Frigo58 SmartLift 1D suitable for night deliveries?
Yes, several IsoLok solutions, including the Frigo58 SmartLift 1D, are PIEK certified for night-time deliveries, ensuring noise emissions under 60dB(A).
Are the Frigo58 SmartLift 1D systems ATP and HACCP compliant?
Yes, the Cool and Frigo Series comply with ATP and HACCP regulations for the transport of perishable goods.
Can the Frigo58 SmartLift 1D be retrofitted into existing trailers?
Yes, the Frigo58 SmartLift 2D can be installed in both new and existing trailers of any OEM brand. It's also compatible with Schmitz Cargobull tracks, which means the Frigo58 can replace the original bulkhead without any changes required.
What are the product specifications for the Frigo58 SmartLift 1D?
CPT Panel with 43mm thickness, 0.58 W/m²K insulation value, 110 mm load height restriction.
What is a Frigowall?
The previous name of this product is Frigowall. We've decided to change the product names of our IsoLok to better position our solutions.
Currently Frigo stands for our range of IsoLok solutions with Clever Panel Technology, the number reflects to the insulation value. The insulation value of our solutions are unrivalled in the market.
