2Fold
Folds in two
Cool38 Flex
Ultimate performance combined with complete flexibility

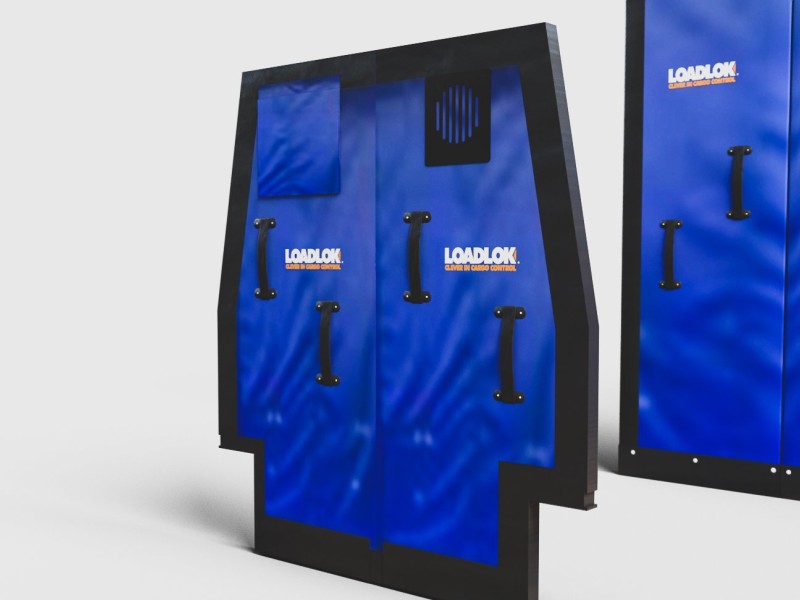

This is our soft and removable wall, the Cool38 Flex. The ultimate solution for transport companies who require high flexibility and performance in refrigerated (cool or frozen) and dry products in one trailer.
This is our soft and removable wall, the Cool38 Flex. The ultimate solution for transport companies who require high flexibility and performance in refrigerated (cool or frozen) and dry products in one trailer. Ideal in situations when the temperature difference between both compartments is more than 20° Celsius with less than 5 stops a day. Rescaling the cooled compartment means less air to cool and prevents cooled air from escaping (lower fuel consumption).
Scroll down for all related downloads or visit the Knowledge Base.
High flexibility
Best Insulation Performance
0,38 w/m2K
PIEK Certified
For night deliveries
Cool38 Flex versions
Our Cool38 Flex comes in 5 different versions. Depending on the folding and vehicle requirements, we offer our temperature separation wall as:
3Fold
Folds in three, stowage between double decking beams

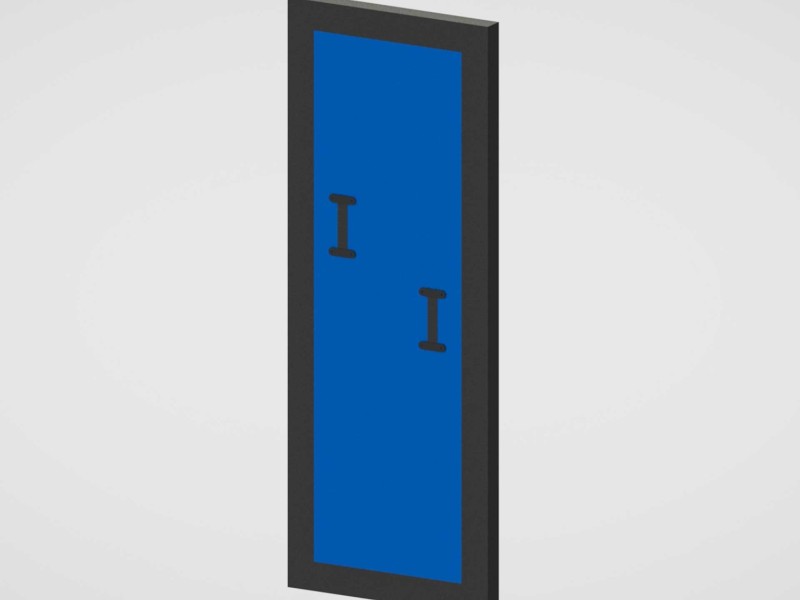

Push-In
For perfect closure of 1/3 compartments
Van
Specifically adapted for LCV. Completely tailored, including foldable corner flaps which are designed to accommodate the wheel arches to ensure a robust seal

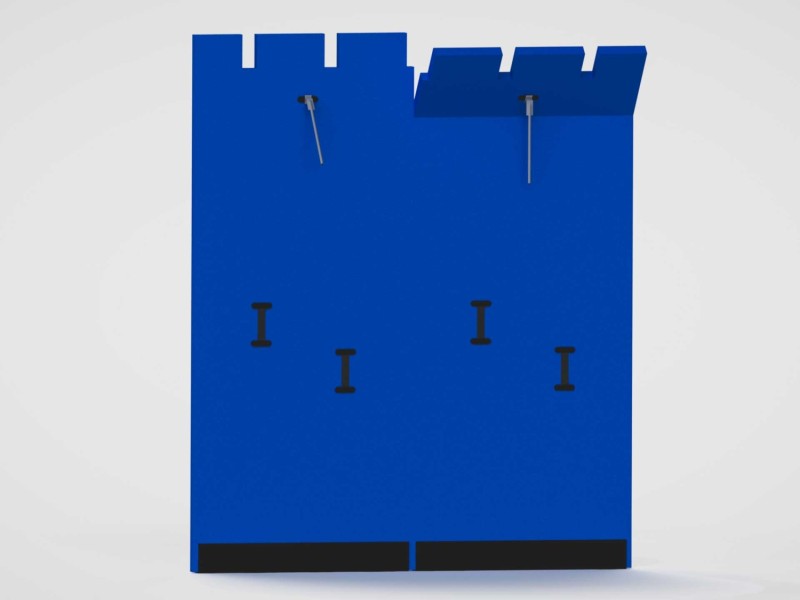

Meat
Folds perfectly closed around the rails/hooks on the roof of the vehicle. Specifically for meat transport
Your ultimate solution?

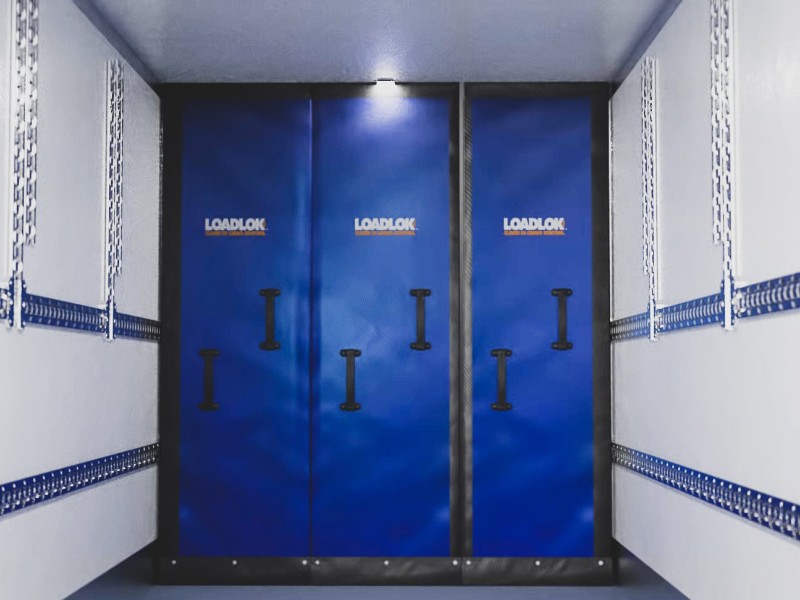

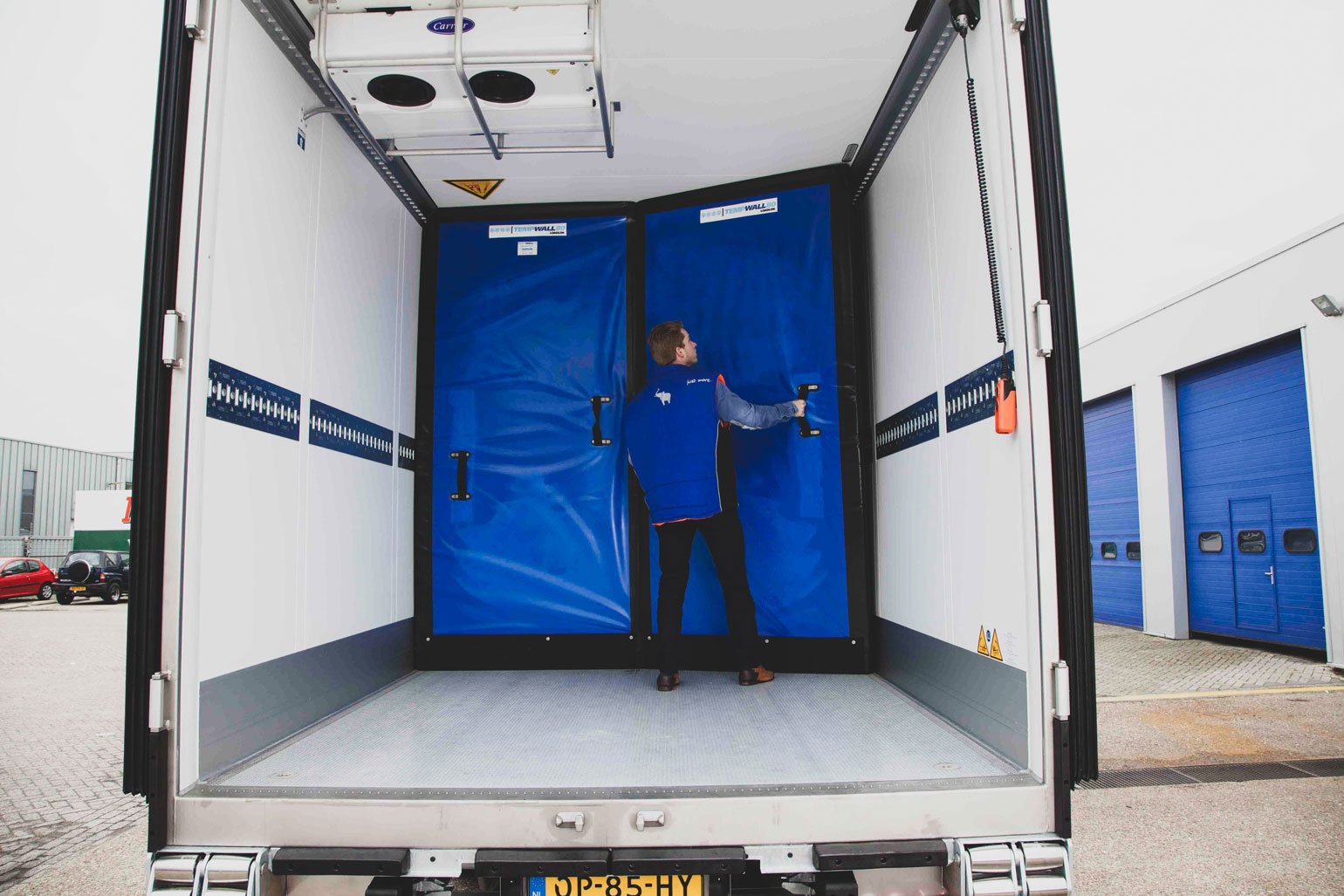

Available for HGV and LCV in different folding for storage. The separation wall can be repositioned throughout the entire refrigerated trailer/reefer at any given position. Simply fold it to the side for quick loading or unloading.
Our unique foam composition has been wrapped in a thick layer of PVC, making it highly wear resistant. On both sides and top we have covered the wall with a soft-compression foam for a perfect closure – without any cold air leakage!
| Product | Version | Material | Thickness (mm) | Insulation Value (w/m2K) | Weight (kg) |
|---|---|---|---|---|---|
| Cool38 Flex | 2Fold | Closed Cell PE | 80 | 0,38 | 36 |
| Cool38 Flex | 3Fold | Closed Cell PE | 80 | 0,38 | 36 |
| Cool38 Flex | Push-In | Closed Cell PE | 80 | 0,38 | 36 |
| Cool38 Flex | Van | Closed Cell PE | 80 | 0,38 | 36 |
| Cool38 Flex | Meat | Closed Cell PE | 80 | 0,38 | 36 |
Scroll left to right
3D Animation video
Watch our 3D Animated video to discover all details about our IsoLok solution.
Closed-Cell Foam Technology (CFT)
The outstanding insulation performance and usability is due to our unique closed cell cross linked foam technology. The foam is high impact resistant and does not absorb any water, ideal in a humid environment. The foam is wrapped in a thick and strong outer skin of PVC. Making it the most durable and economic bulkhead in the market! The insulation performance is measured in K-value (W/ m2 K). IsoLok solutions with our CFT technology offer the highest K-value performance in its product segment. Significantly better value for money than bulkheads of e.g. OEM’s or others. Each of our IsoLok solutions have been tested by an independent research center Wageningen University of Research (WUR NL) and are expressed in a K value for thermal conductivity. The K-value expresses the amount of heat that passes through over time per m² and per degree of temperature difference between one side of a wall and the other. The lower the K value, the less heat is lost and therefore the better the insulating performance.
SmartLift
The unique SmartLift balancer system allows the bulkhead to open/close and to reposition the wall in the vehicle. With almost no effort the operator can reposition the wall throughout the vehicle. The SmartLift system has the lowest height restriction in the market: 110 mm. A unique feature when you want to maximise the capacity of your vehicle.
It is equipped with an automatic locking system to prevent any movement during transport. Inside the balancer there is a steel coil spring – completely free of maintenance! The balancer slides in LoadLok J-Track (available in different material finishes).
Higher efficiency with multiple temperature zones

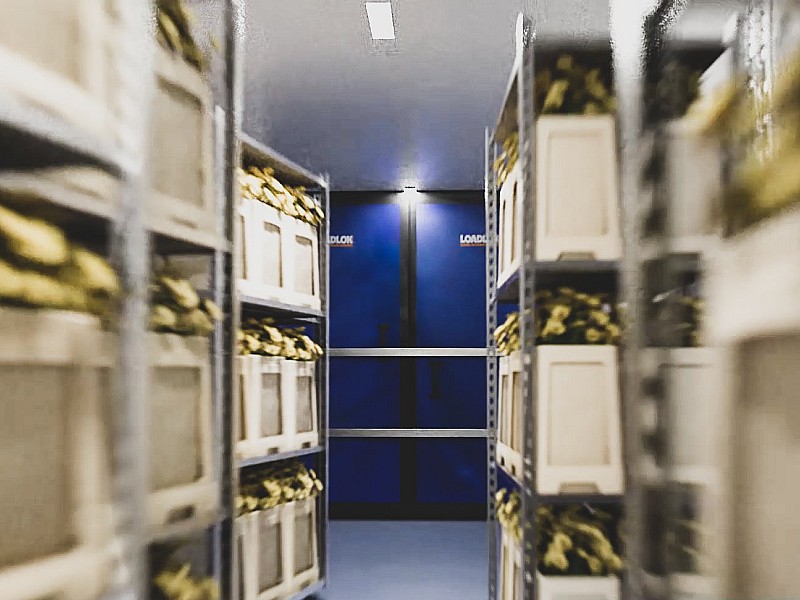

IsoLok Multitemp solutions help to rescale the conditioned compartment to the minimum possible (even for partial loads). With market-leading insulation performance and compartment closure, these solutions are able to save users over 40% on energy consumption*. The reduced size of the conditioned compartment enables transport companies to transport dry or cooled products in the remaining space, increasing flexibility and load efficiency and thus increase profit in the cold chain!
* Based on average 50% cargo over the day, calculated by Wageningen University of Research (WUR NL www.wur.nl)
PIEK Certified for night deliveries
Several IsoLok solutions have been approved and certified according to PIEK standards. With this certificate the bulkhead is suitable for distribution during night-time in city centres!
Governments defined standards for noise emission during loading and unloading during night-time deliveries. A PIEK certificate is issued for vehicles and equipment operating under 60dB(A) which will be suitable for use in night-time deliveries without causing noise disturbance. Check the PIEK certificate in the download section of the product to see if PIEK is applicable.
ATP and HACCP compliant
The ATP, (Accord Transport Perissable) and HACCP (Hazard Analysis and Critical Control Points) set strict regulations for the transport of perishable goods.
The Cool and Frigo Series are compliant to this norm 1.
1 Ask our sales representatives for ATP norm for the French market.
Tailored to any vehicle or application
With market demands varying greatly, our product offering goes far beyond its standard solutions. If the end-user wishes specific requirements which are not in the product line, we are able to customise or develop custom-designed solutions, tailored to the specific needs of its customers.
We have developed and produced specific solutions for Meat, Pharma, Supermarkets, Retail and Restaurants. And not just for reefers, also for Light Commercial Vehicles (Sprinters etc.) Multiple folding, integrated doors, wings, or a specific parking solution?
Let us know how we can tailor the ultimate efficient Multitemp solution for your application.
Contact our team of specialists
Get in touch with our cargo control specialists today. Ask for a quote, product information or a product tailored to your specifications.
Please contact or product specialist from:
Your questions answered
Our most frequently asked questions you will find below. If you have further questions regarding our solutions, don't hesitate to contact our load optimisation experts.
What is the Cool38 Flex?
The Cool38 Flex is a soft and removable wall designed to provide ultimate performance and flexibility for transporting refrigerated (cool or frozen) and dry products in one trailer. It is ideal for situations requiring high temperature differences between compartments.
What are the key features of the Cool38 Flex?
- Soft and Removable: Provides flexibility by allowing the wall to be repositioned or folded for storage.
- High Insulation Performance: Made with closed-cell PE foam and wrapped in PVC for durability and insulation.
- Multiple Versions: Available in five versions (Push-in, Van, Meat, 2Fold, 3Fold) to suit different vehicle requirements.
In which situations is the Cool38 Flex most beneficial?
The Cool38 Flex is ideal when:
- The temperature difference between compartments is more than 20° Celsius.
- There are fewer than five stops per day.
- Flexibility in rescaling the cooled compartment is needed to reduce air cooling and prevent cold air from escaping, leading to lower fuel consumption.
What are the available versions of the Cool38 Flex?
- Push-In: For perfect closure of 1/3 compartments.
- Van: Tailored for Light Commercial Vehicles (LCVs), includes foldable corner flaps to accommodate wheel arches.
- Meat: Specifically designed for meat transport, folds around roof rails/hooks.
- 2Fold: Folds in two.
- 3Fold: Folds in three, suitable for stowage between double decking beams.
How does the Cool38 Flex improve efficiency?
By rescaling the cooled compartment, the Cool38 Flex reduces the amount of air to cool and prevents cooled air from escaping, which lowers fuel consumption. This efficiency can save users over 40% on energy consumption based on average 50% cargo over the day.
What makes the Cool38 Flex durable?
The Cool38 Flex is made with a unique closed-cell PE foam technology wrapped in a thick PVC layer. This composition makes it highly wear-resistant and non-absorbent, ideal for humid environments. The foam offers high impact resistance and excellent insulation performance.
Is the Cool38 Flex suitable for different vehicle types?
Yes, the Cool38 Flex is available for both Heavy Goods Vehicles (HGV) and Light Commercial Vehicles (LCV) and can be tailored to specific requirements. The different versions ensure compatibility with various vehicle types and storage needs.
Is the Cool38 Flex ATP and HACCP compliant?
Yes, the Cool and Frigo Series, including the Cool38 Flex, comply with ATP (Accord Transport Perissable) and HACCP (Hazard Analysis and Critical Control Points) regulations for the transport of perishable goods.
What are the product specifications for the Cool38 Flex?
- Material: Closed Cell PE
- Thickness (mm): 80
- Insulation Value (W/m²K): 0.38
- Weight (kg): 36
- Versions: 2Fold, 3Fold, Push-In, Van, Meat
How does the Cool38 Flex support night-time deliveries?
Several IsoLok solutions, including the Cool38 Flex, are PIEK certified, ensuring they meet noise emission standards for night-time deliveries in city centers. PIEK certification allows vehicles and equipment operating under 60dB(A) to be used without causing noise disturbances.
What is a Tempwall?
The previous name of this product is Tempwall80. We've decided to change the product names of our IsoLok to better position our solutions.
Currently Cool stands for our range of IsoLok solutions with Clever Foam Technology, the number reflects to the insulation value. The insulation value of our solutions are unrivalled in the market.
