Frigo58 TopMounted 1D
The fixed Multitemp solution for LCV
The hard-wall IsoLok Frigo58 TopMounted 1D combines high insulation performance with the highest convenience possible combined with lowest height restriction (110mm).
The hard-wall IsoLok Frigo58 TopMounted 1D combines high insulation performance with the highest convenience possible combined with lowest height restriction (110mm).

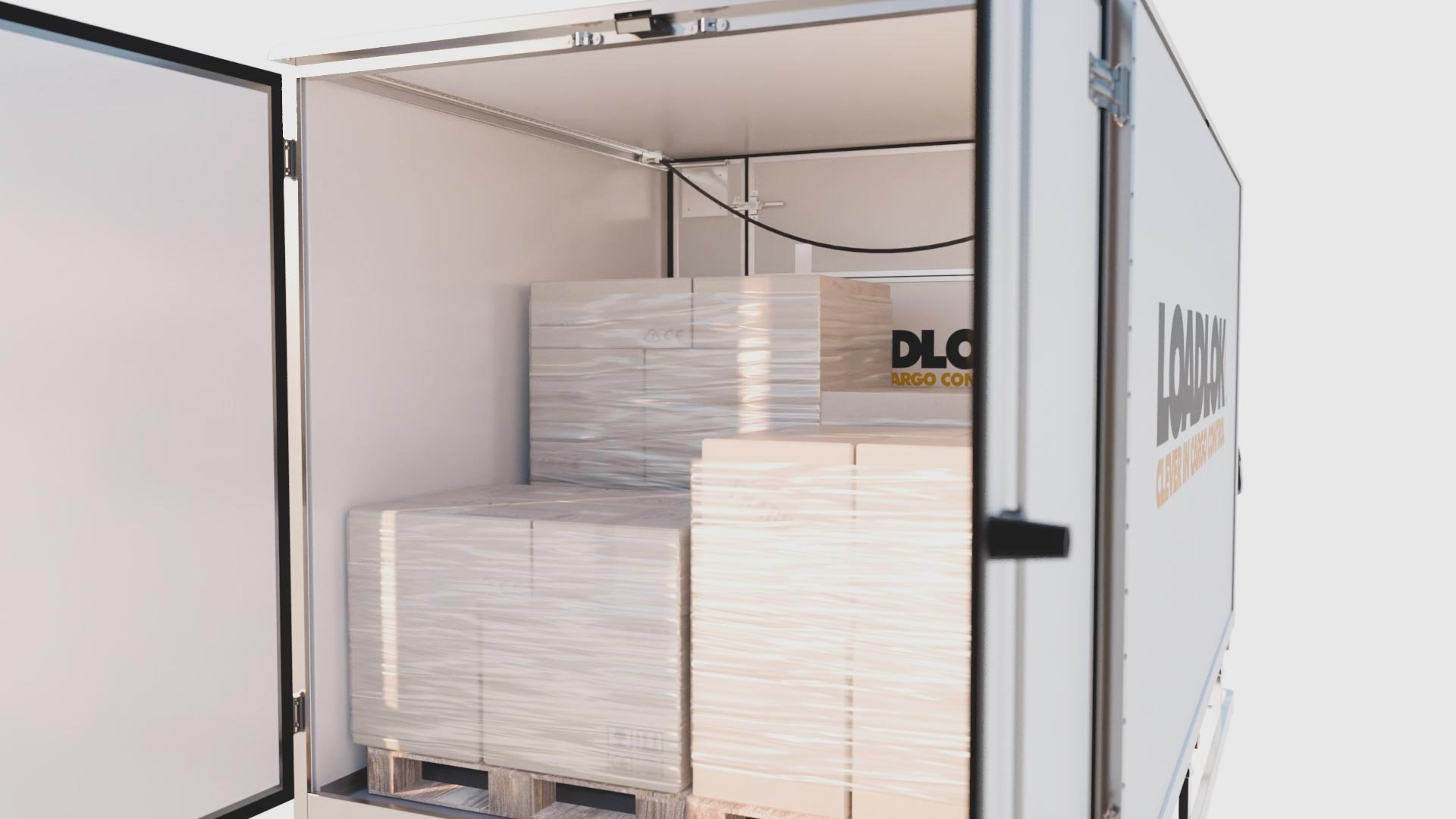

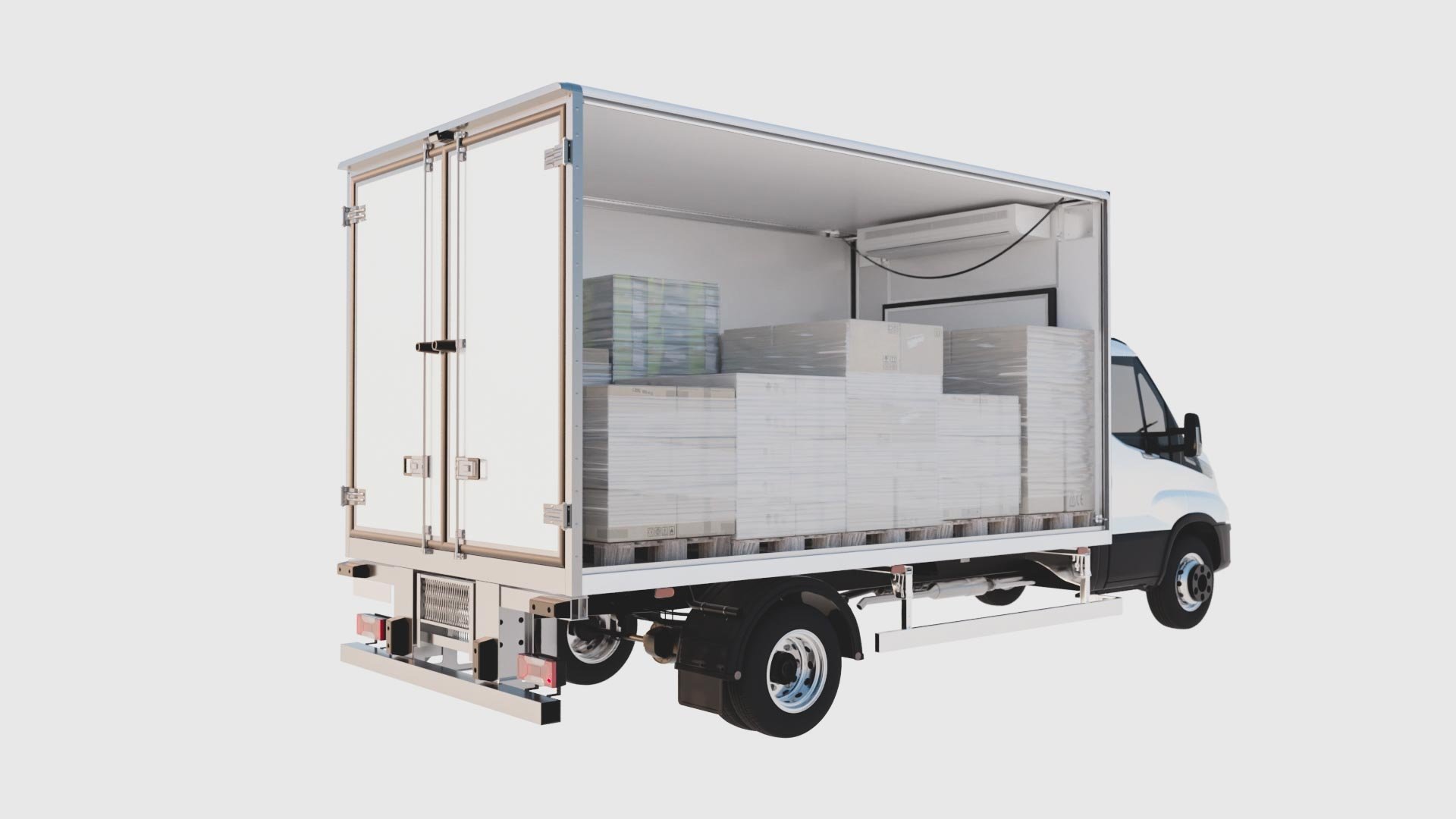

The hard-wall IsoLok Frigo58 TopMounted 1D combines high insulation performance with the highest convenience possible combined with lowest height restriction (110mm). The single span, fixed bulkhead can be repositioned throughout the entire Light Commercial Vehicle (LCV) when it is in a 45° position. This reduces the size of the cooled compartment (less fuel consumption) and keeps the cooled air in during loading and unloading.
Scroll down for all related downloads or visit the Knowledge Base.
Lowest height restriction
110mm
Best Insulation Performance
0,58 w/m2K
TopMounted
Economic mounting system
TopMounted

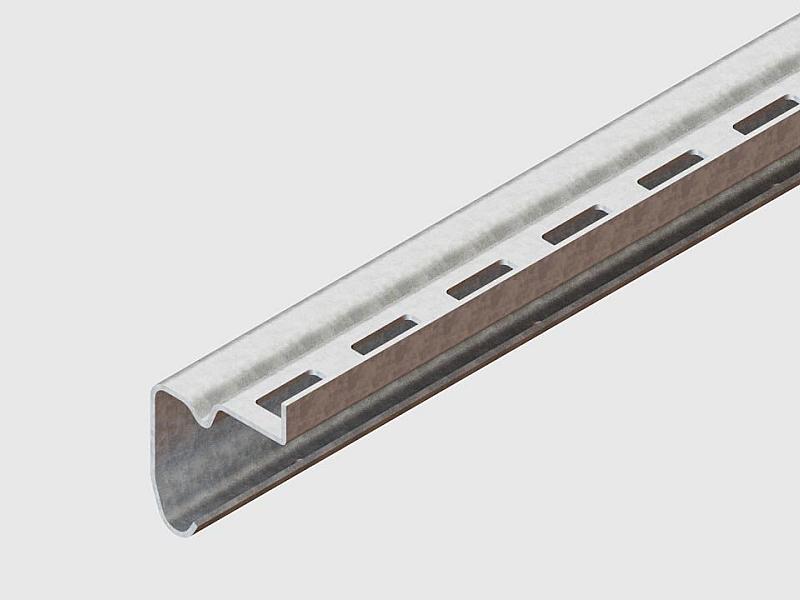

The bulkhead is equipped with TopMounted system on both sides with manual locking, and slides into a LoadLok 3061 or 3062 J-Track (not included).

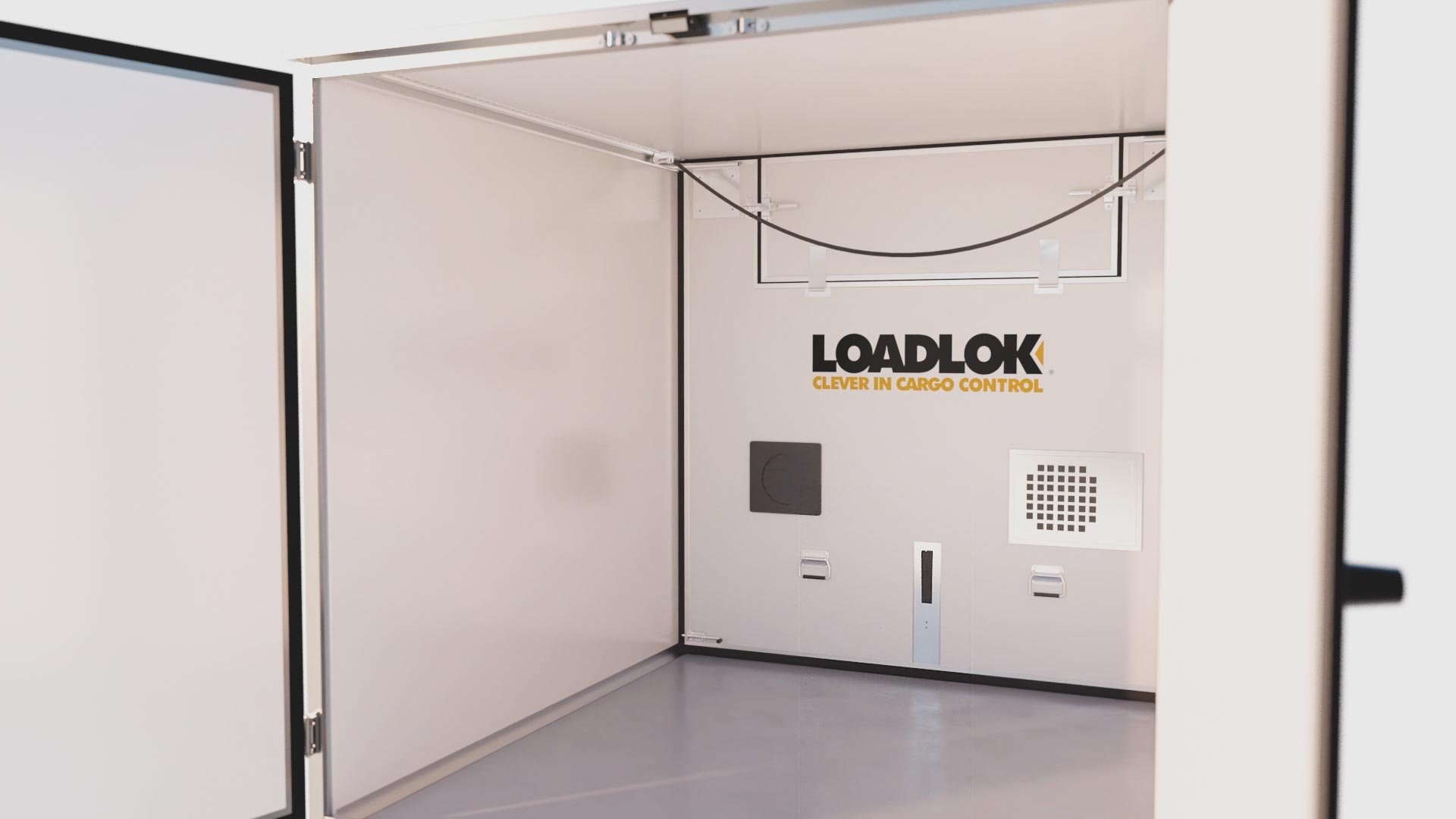

Simply unlock the integrated floor stopper to open and use the strap to unlock and slide the separation wall through the entire vehicle. Available with different options, such as ventilator, air return and flap to park the Frigo58i Top Mounted 1D at the evaporator.
Your ultimate solution?
The Frigo58 TopMounted 1D is ideal in situations when the temperature difference between both compartments is less than 20° Celsius. Also, when convenience in operating is required, for example, with multiple stops during the day. A fixed solution will give the advantage of quickly rescaling the cooled compartment and prevents cooled air from escaping.
Clever Panel Technology (CPT)
Our Frigo Series consists of 43mm hard wall glassfibre reinforced sandwich panels. These rigid lightweight panels offer excellent insulation values and do not absorb water, ideal in a humid environment. For perfect closure inside the vehicle, the panels are equipped with rubber seals (both sides, bottom and around the balancers) to minimise the cool leakage. The insulation performance is measured in K-value (W/ m2 K). IsoLok solutions with our CPT technology offer the highest K-value performance in its product segment. Significantly better value for money than bulkheads of e.g. OEM’s or others.
Each of our IsoLok solutions have been tested by an independent research center Wageningen University of Research (WUR NL) and are expressed in a K value for thermal conductivity. The K-value expresses the amount of heat that passes through over time per m² and per degree of temperature difference between one side of a wall and the other. The lower the K value, the less heat is lost and therefore the better the insulating performance.
The only low-maintenance solution
Whereas with OEM bulkheads, repairs and maintenance can be extremely time-consuming and expensive. With LoadLok's multitemp solutions there is no more hassle. Most other bulkheads are equipped with fragile gas springs that require continuous service checks, LoadLok uses steel coil springs. The SmartLift mechanic balancer system is a low-maintenance solution for swiftly open/close and reposition the wall in the vehicle.
Frigo Series CPT reinforced sandwich panels are manufactured from glassfiber, which makes them easy repaired by any service partner. In case of any repair, we have spare parts widely available from stock. Your downtime will always be limited.
SmartLift
The unique SmartLift balancer system allows the bulkhead to open/close and to reposition the wall in the vehicle. With almost no effort the operator can reposition the wall throughout the vehicle. The SmartLift system has the lowest height restriction in the market: 110 mm (when used with IsoLok tracks). A unique feature when you want to maximise the capacity of your vehicle.
It is equipped with an automatic locking system to prevent any movement during transport. Inside the balancer there is a steel coil spring – completely free of maintenance! The balancer slides in:
- LoadLok J-Track (available in different material finishes)
- LoadLok RS-Track - unique design made out of aluminium
- Schmitz Cargobull standard roof tracks
- Krone standard roof tracks
Ask your sales representative for the optimal SmartLift system for your OEM.
Higher efficiency with multiple temperature zones
IsoLok Multitemp solutions help to rescale the conditioned compartment to the minimum possible (even for partial loads). With market-leading insulation performance and compartment closure, these solutions are able to save users over 40% on energy consumption*. The reduced size of the conditioned compartment enables transport companies to transport dry or cooled products in the remaining space, increasing flexibility and load efficiency and thus increase profit in the cold chain!
* Based on average 50% cargo over the day, calculated by Wageningen University of Research (WUR NL www.wur.nl)
Tailored to any vehicle or application
With market demands varying greatly, our product offering goes far beyond its standard solutions. If the end-user wishes specific requirements which are not in the product line, we are able to customise or develop custom-designed solutions, tailored to the specific needs of its customers.
We have developed and produced specific solutions for Meat, Pharma, Supermarkets, Retail and Restaurants. And not just for reefers, also for Light Commercial Vehicles (Sprinters etc.) Multiple folding, integrated doors, wings, or a specific parking solution?
Let us know how we can tailor the ultimate efficient Multitemp solution for your application.
PIEK Certified for night deliveries
Several IsoLok solutions have been approved and certified according to PIEK standards. With this certificate the bulkhead is suitable for distribution during night-time in city centres!
Governments defined standards for noise emission during loading and unloading during night-time deliveries. A PIEK certificate is issued for vehicles and equipment operating under 60dB(A) which will be suitable for use in night-time deliveries without causing noise disturbance. Check the PIEK certificate in the download section of the product to see if PIEK is applicable.
ATP and HACCP compliant
The ATP, (Accord Transport Perissable) and HACCP (Hazard Analysis and Critical Control Points) set strict regulations for the transport of perishable goods.
The Cool and Frigo Series are compliant to this norm 1.
1 Ask our sales representatives for ATP norm for the French market.
OEM retrofit
Do you need to replace your existing Schmitz partition wall? Or would you like to use a superior product instead of the OEM version? Our full range of Frigo Series and Cool Series Multitemp solutions can be installed in both new and existing trailers of Schmitz Cargobull. Both Multitemp solutions will be delivered in the exact size for the trailer to guarantee an outstanding performance. Our SmartLift balancer system has been made compatible for OEM Schmitz Cargobull tracks and have only a 140mm height restriction.
- Product
- Frigo58 TopMounted
- Version
- 1D
- Insulation Value (w/m2K)
- 0,58
- Weight (Kg)
- 105
- Material
- Glassfiber
- Thickness (mm)
- 43
- Load Height Restriction (mm)
- 110
