SmartLok Tracks

Versatile track range in usage and installation

The SmartLok Track assortment has been specifically designed for LCV. Lightweight, high-strength aluminium Tracks that come in a variety of lengths.

Request quotation Contact us

38 Years of experience

We've been around in cargo control for a long time

Customisations

We're able to customize to your requirements

European Manufacturer

We design and manufacture in Europe

The SmartLok Track assortment has been specifically designed for LCV. Lightweight, high-strength aluminium Tracks that come in a variety of lengths. Suitable for surface mounted or semi-recessed installation in any kind of vehicle. Whether the tracks would be positioned horizontally, vertically on either the side walls or roof/floor.

SmartLok Tracks

Select a solution that fits best to your vehicle and application

SmartLok

5001

Surface mounted Airline Track

SmartLok

5002

Recessed Airline Track

SmartLok

5004

Semi-Recessed Airline Track

SmartLok

5008

Recessed Airline Track

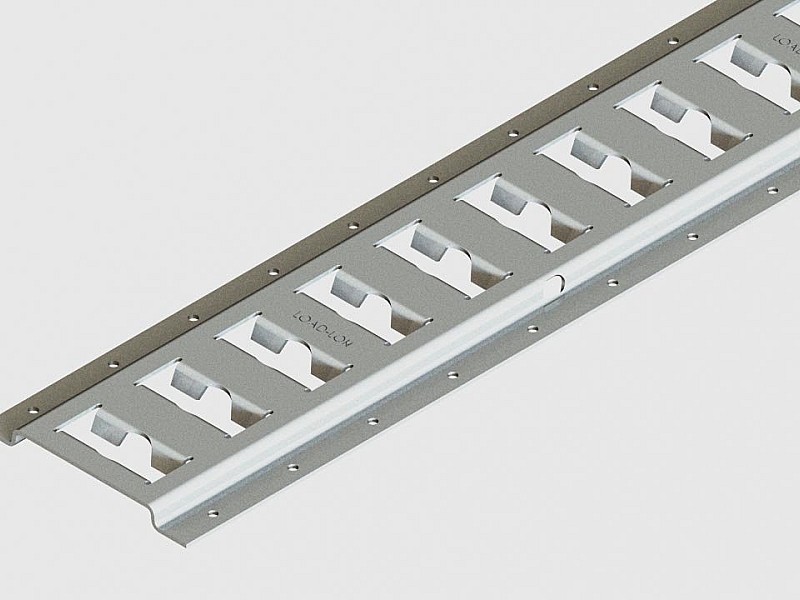

SmartLok

3009

Aluminum Combi Track

LCV in Logistics

The transport landscape is changing. The distribution model is shifting from bulk transport in trucks to a combination of train and trucks between large hubs close to large cities. Smaller vehicles (LCV) take care of the final distribution inside city centres.

Last Mile Logistics

Once the central distribution has been done, it then has be transported to the final destination. As this last leg of distribution is often less-efficient, comprising up to 53% of the total cost to move goods. We saw the ‘last mile problem’ as our challenge to create a solution that is as dynamic and flexible it can be. We introduced SmartLok – a range of smart plug & play products to create a flexible system for LCV. Create a second floor in an instant, use a combination of straps and fittings, or secure longitude items with shoring poles in combination with customizable tracks.

LCV in Pharma /Multitemp Logistics

Keeping the cold chain intact can be difficult, especially in last mile pharma or multitemp logistics. By optimizing the loading space the operator has better control of the temperature. Our SmartLok Tempwall60 Van has been optimized for LCV. Completely customizable and comes standard with the most optimum closure to prevent cold air leakage. Including specific including foldable corner flaps which are designed to accommodate the wheel arches to ensure a robust seal.

Ultimate flexibility

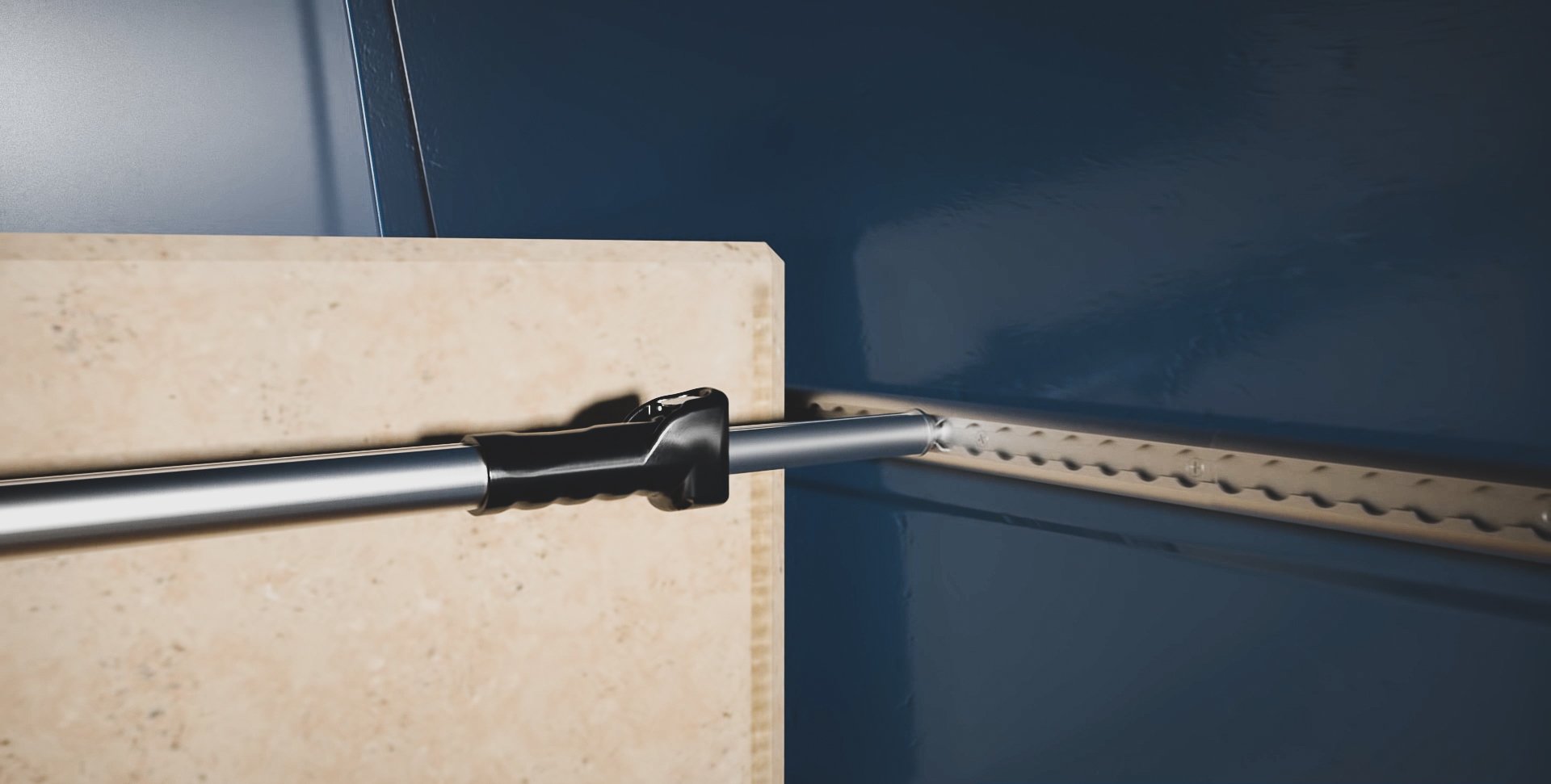

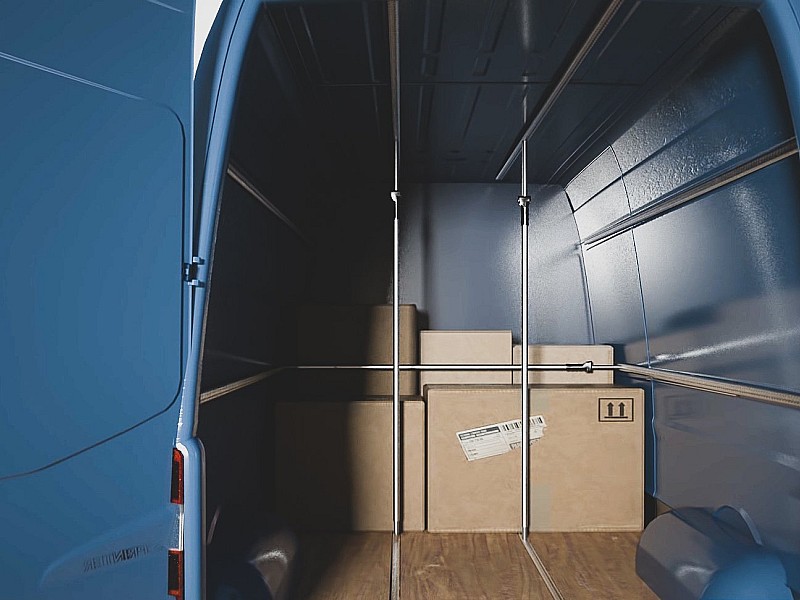

Combine the tracks with other SmartLok equipment. For example with our SmartLok Combi Poles, Beams and Lashing Straps to create the ultimate flexible and adjustable layout for your LCV. Each track is fully customizable in length, fixing holes, material and finishing.

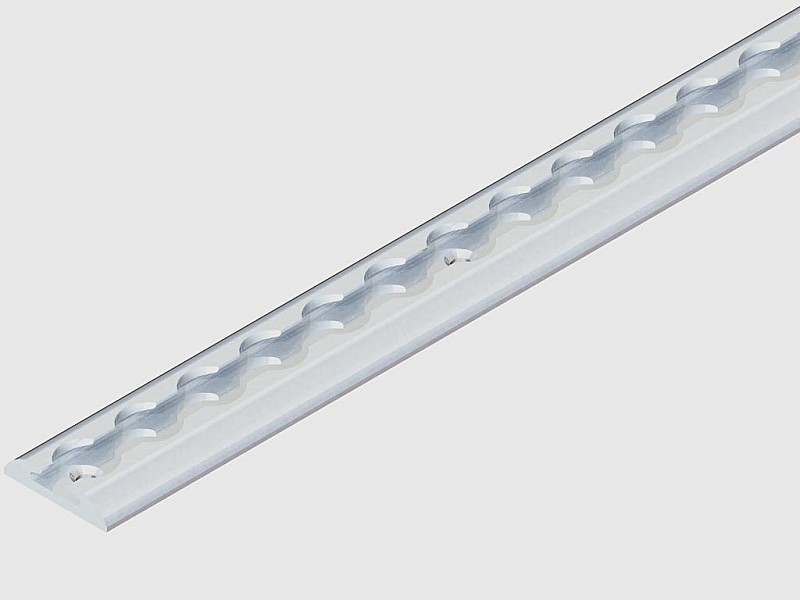

SmartLok 5001

Article no.	Configuration	Product	Material	Finishing	Fixing Hole Ø (mm)	Fixing Hole Pitch (mm)	Thickness (mm)	Length (mm)	Profile Width (mm)	Profile Height (mm)	Duty
10010651	Surface mounted	5001	Aluminum	Non-Anodised	7 Countersunk	152,4	9,5	178	42	9,5	Light Duty
10010652	Surface mounted	5001	Aluminum	Non-Anodised	7 Countersunk	152,4	9,5	330	42	9,5	Light Duty
10010653	Surface mounted	5001	Aluminum	Non-Anodised	7 Countersunk	152,4	9,5	483	42	9,5	Light Duty
10010654	Surface mounted	5001	Aluminum	Non-Anodised	7 Countersunk	152,4	9,5	635	42	9,5	Light Duty
10010655	Surface mounted	5001	Aluminum	Non-Anodised	7 Countersunk	152,4	9,5	787	42	9,5	Light Duty
10010656	Surface mounted	5001	Aluminum	Non-Anodised	7 Countersunk	152,4	9,5	940	42	9,5	Light Duty
Custom	Surface mounted	5001	Aluminum	Non-Anodised Anodised	Customizable	Customizable	9,5	Customizable	42	9,5	Light Duty

_{< Scroll left to right >}
_{Minimum order quantities apply, please ask our sales department}

> Product Catalog

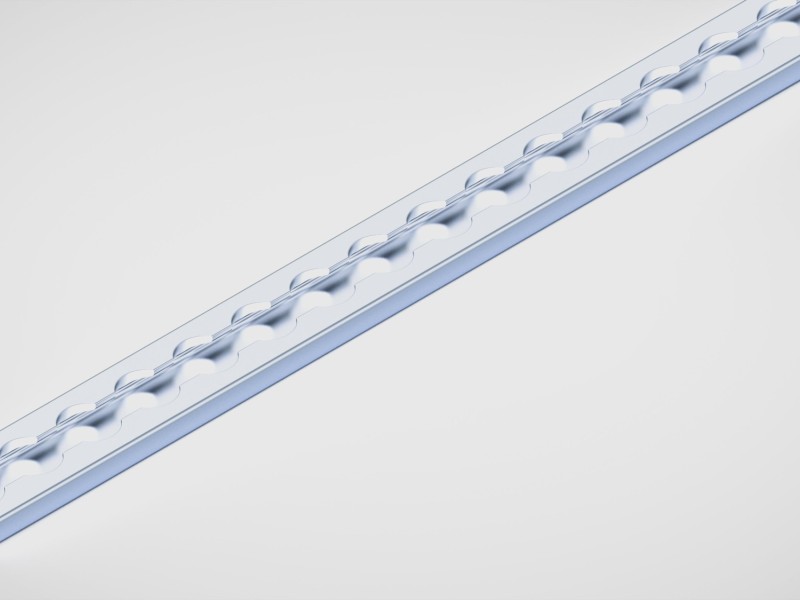

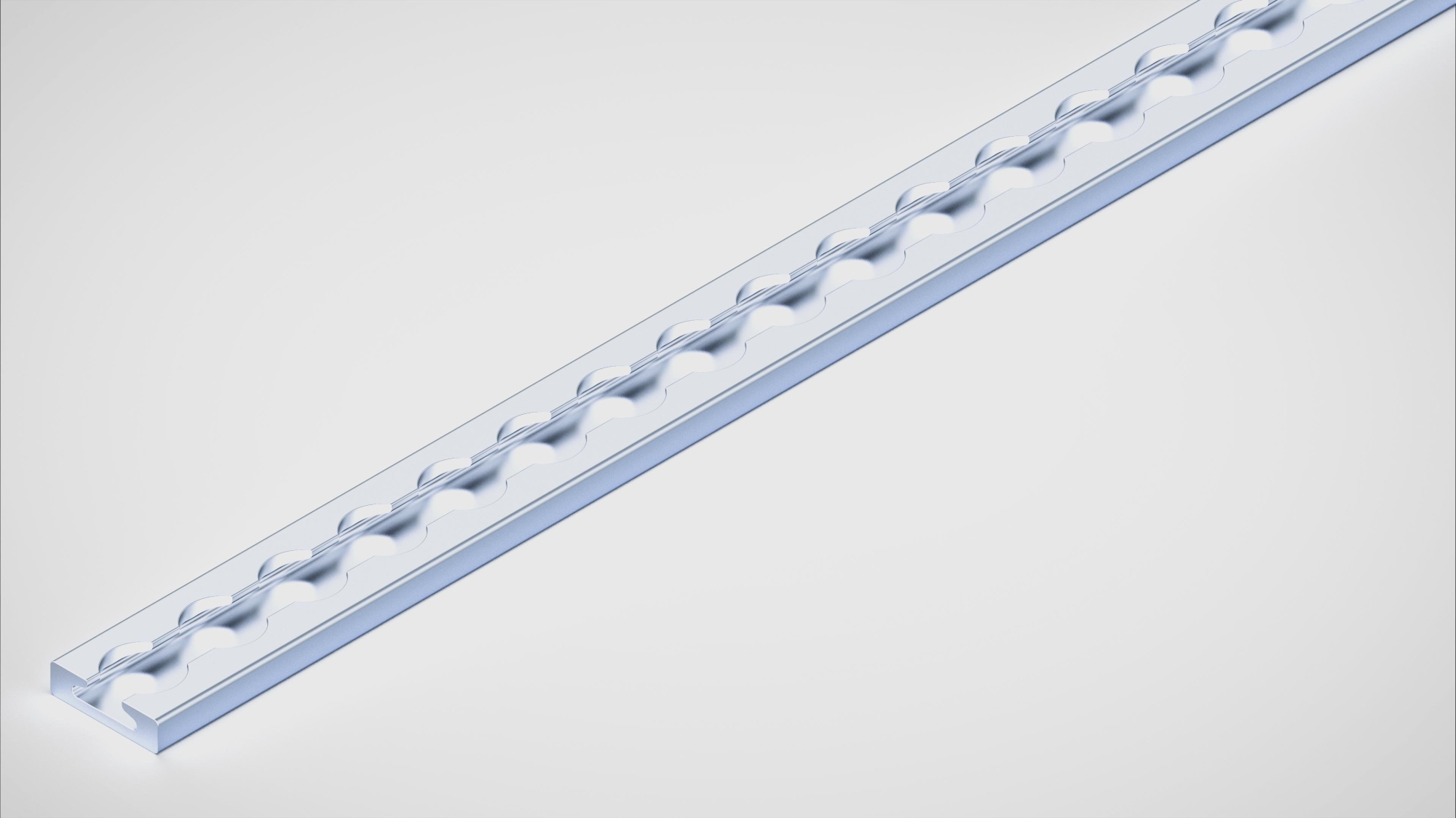

SmartLok 5002

Article no.	Configuration	Product	Material	Finishing	Fixing Hole Ø (mm)	Fixing Hole Pitch (mm)	Thickness (mm)	Length (mm)	Profile Width (mm)	Profile Height (mm)	Duty
10010709	Recessed	5002	Aluminum	Non-Anodised	No fixing holes	No fixing holes	9,5	2997	34,5	9,5	Light Duty
Custom	Recessed	5002	Aluminum	Non-Anodised Anodised	Customizable	Customizable	9,5	Customizable	Customizable	Customizable	Light Duty

_{< Scroll left to right >}
_{Minimum order quantities apply, please ask our sales department}

> Product Catalog

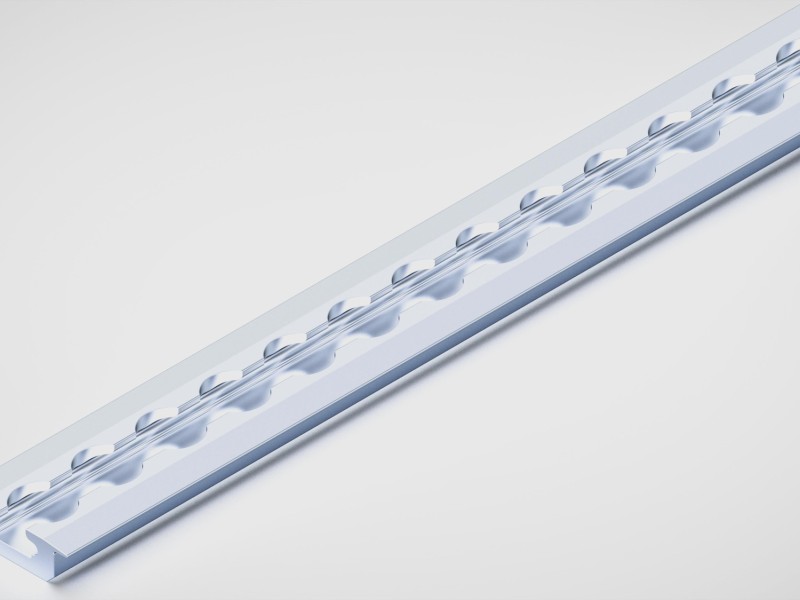

SmartLok 5004

Article no.	Configuration	Product	Material	Finishing	Fixing Hole Ø (mm)	Fixing Hole Pitch (mm)	Thickness (mm)	Length (mm)	Profile Width (mm)	Profile Height (mm)	Duty
10010710	Semi-Recessed	5004	Aluminum	Non-Anodised	No fixing holes	No fixing holes	14	2997	44,5	14	Light Duty
Custom	Semi-Recessed	5004	Aluminum	Non-Anodised Anodised	Customizable	Customizable	14	Customizable	Customizable	Customizable	Light Duty

_{< Scroll left to right >}
_{Minimum order quantities apply, please ask our sales department}

> Product Catalog

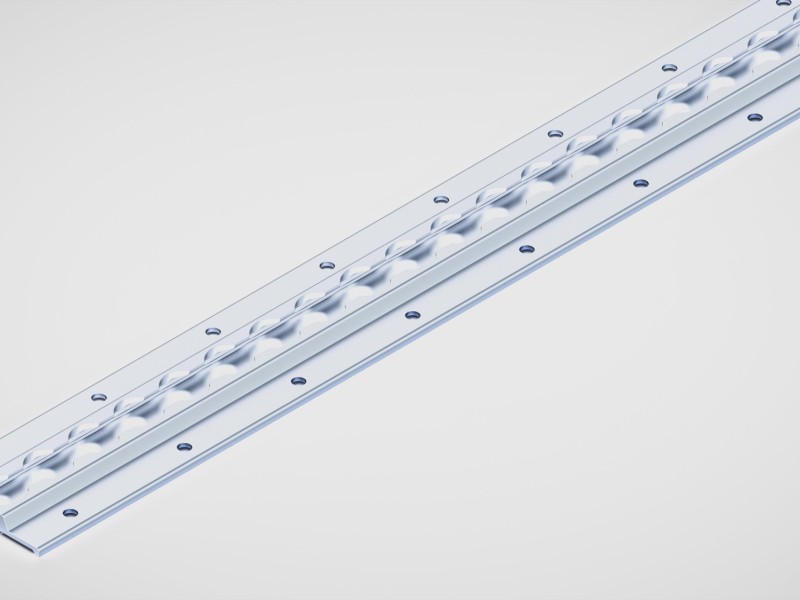

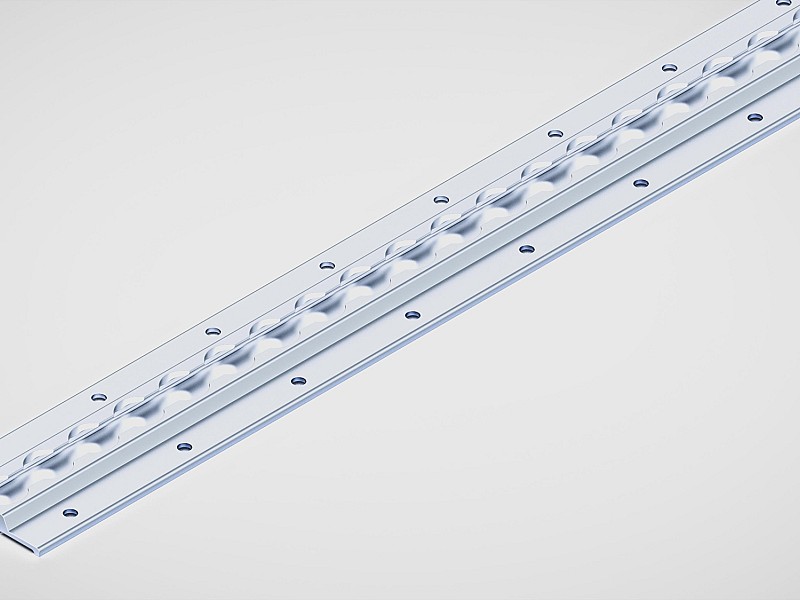

SmartLok 5008

Article no.	Configuration	Product	Material	Finishing	Fixing Hole Ø (mm)	Fixing Hole Pitch (mm)	Thickness (mm)	Length (mm)	Profile Width (mm)	Profile Height (mm)	Duty
10008710	Recessed	5008	Aluminum	Non-Anodised	6	64	9,9	2997	66	9,9	Light Duty
Custom	Recessed	5008	Aluminum	Non-Anodised Anodised	Customizable	Customizable	9,9	Customizable	66	9,9	Light Duty

_{< Scroll left to right >}
_{Minimum order quantities apply, please ask our sales department}

> Product Catalog

SmartLok 3009

Article no.	Configuration	Product	Material	Finishing	Fixing Hole Ø (mm)	Fixing Hole Pitch (mm)	Thickness (mm)	Length (mm)	Profile Width (mm)	Profile Height (mm)	Duty
10010703	Surface Mounted	3009	Aluminum	Non-Anodised	5	50,8	3	3000	131,5	11	Light Duty
Custom	Surface Mounted	3009	Aluminum	Non-Anodised Anodised	Customizable	Customizable	3	Customizable	Customizable	Customizable	Light Duty
